Starbeam

LED area floodlights and street lights

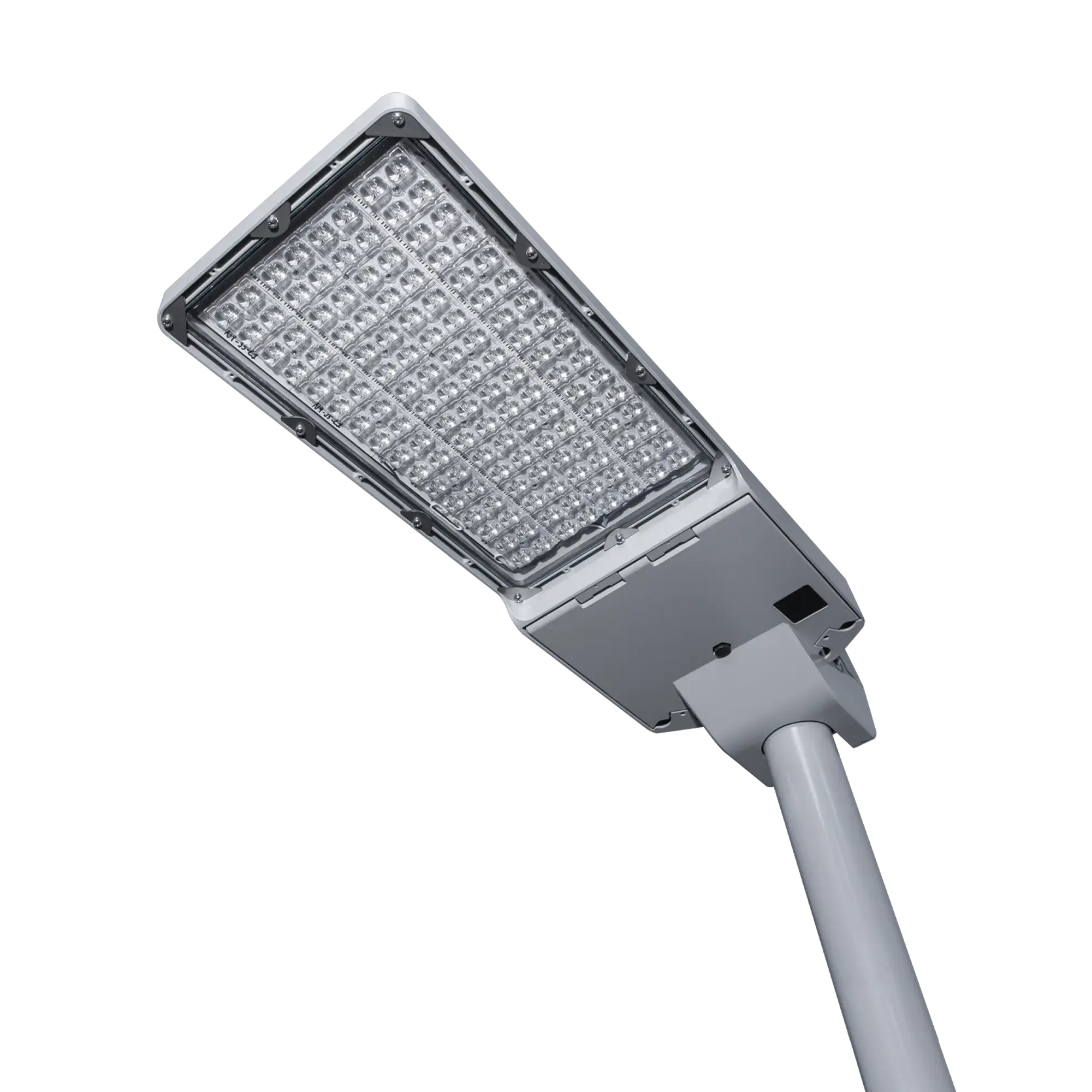

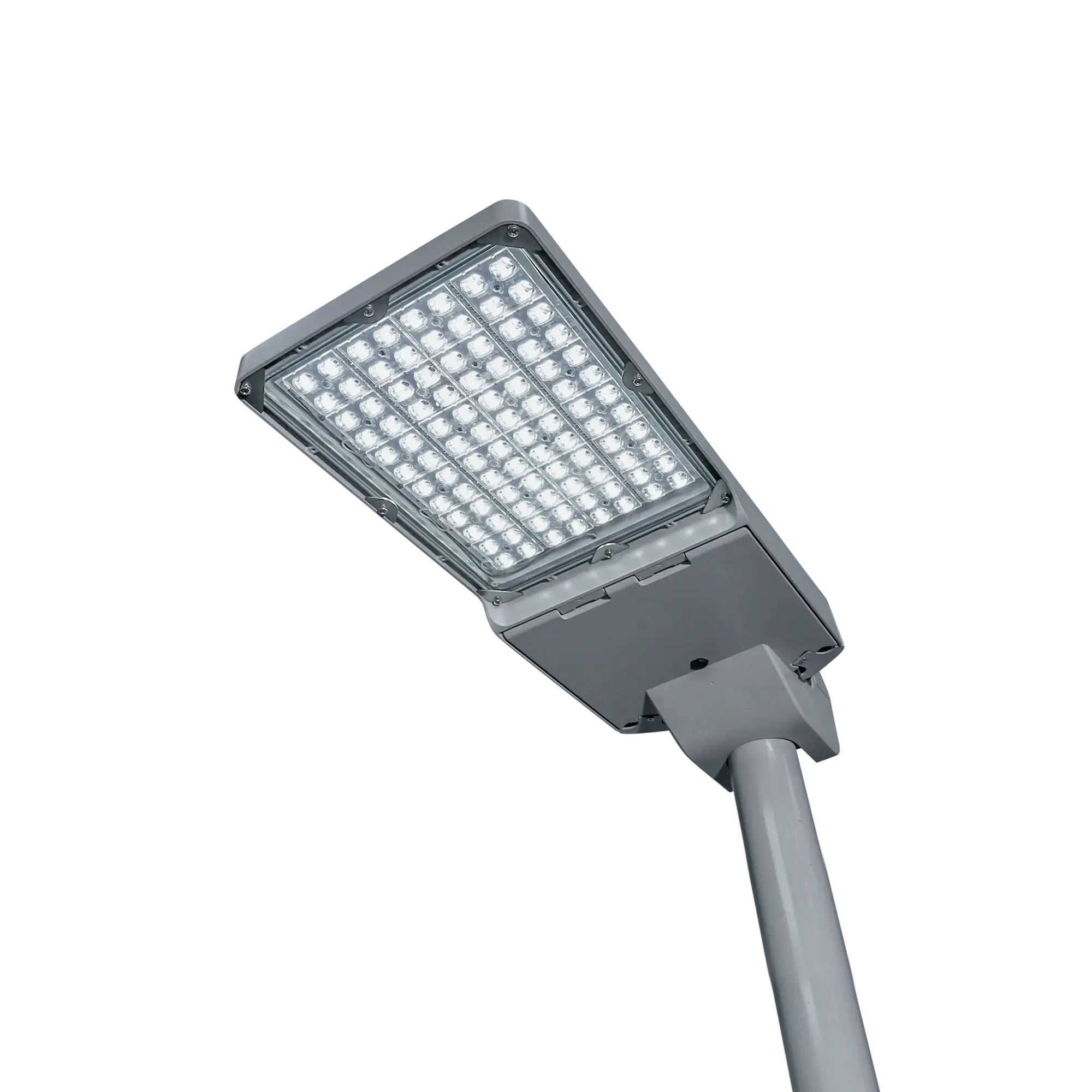

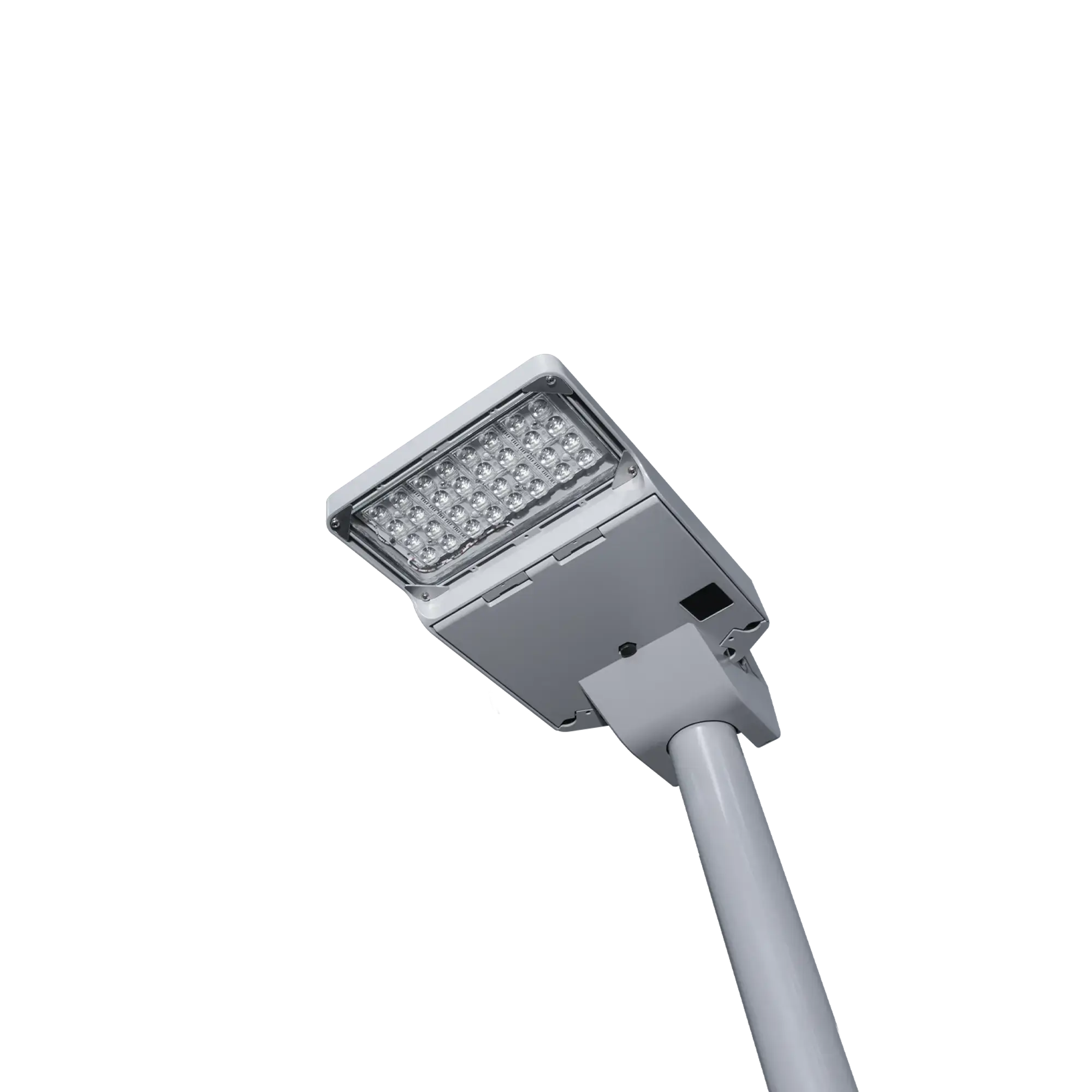

Supremely efficient long life IP66 pole top and wall mounted LED luminaires with aluminium cast body and wiring box and polycarbonate cover. Integral high quality LED driver. Emergency, SmartScan and photocell options.

Applications: car parks, amenity areas, hospital estates, general roadway.

Starbeam datasheet Specify Starbeam

Product details

Strong high pressure die-cast LM6 aluminium body with polycarbonate cover
Area or roadway optical distributions
Integral high efficiency driver
Extremely efficient and long system life up to 100,000 hours
Suitable for ambient temperatures up to 50ºC

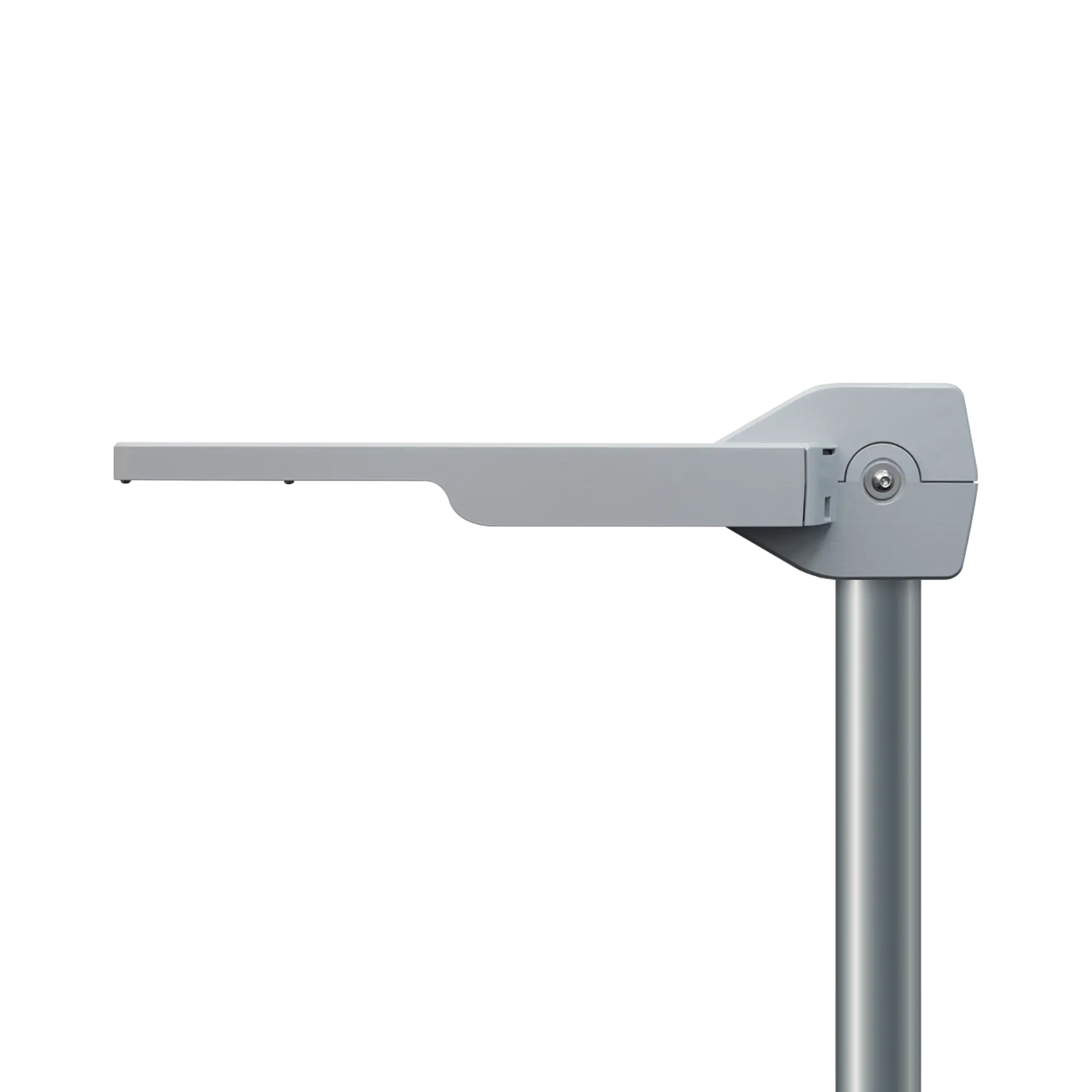

Wide range of mounting options, including wall mounting bracket
Photocell option
SmartScan wireless technology removes the need for control cabling. Ideal for retro-fit

Notes : Emergency versions not suitable for high ambient temperatures / Glass cover versions available to special order

Up to IP66
IK10
Up to 144.5 LL/CW

Specification

Lighting management

Specification

Mounting

Column
Surface

IP rating

Up to IP66

Impact rating

IK10

Max presence detection height

8 m

Lighting

Optic

Clear cover

Lumen output

3,225 lm - 29,995 lm

Efficacy

Up to 144.5 LL/CW

Emergency data

Emergency lumen output

320 lm - 625 lm

Emergency type

Maintained

Emergency duration

3 hours

Battery specification

Nickel Metal Hydride (NiMH)

Power

LED characteristics

CRI

70+

Colour temperature

4000 K

Rated life (hours)

100 K - L90/B10

Compliance

UKCA

Yes

CE

Yes

Energy efficiency class

This product contains a light source of energy efficiency class C

SmartScan wireless standards compliance

Europe: EN 300 220-1 V2.4.1/ EN 301 489-3 V1.6.1. Australasia: ACMA 2014 Radio Communication Standard 2014. Thorlux Patented Wireless Technology - GB2575724
