Prismalette

Vandal-resistant luminaires

Luminaires suitable for internal or external use. Strong high-pressure die-cast aluminium body with flame-retardant polycarbonate cover. Photocell, SmartScan Radar and maintained emergency versions available.

Applications: security areas, precincts, subways, passages and corridors.

Prismalette datasheet Specify Prismalette

Product details

Tamper-resistant cover screws as standard
Optional photocell control
Optional bezel trim for semi-recessed mounting
Complies with M.O.D. JSP482 Chapter 8 Document for ‘Category C’ areas
Microwave presence detector option with stand-by light level feature
SmartScan wireless technology removes the need for control cabling. Ideal for retro-fit

Notes : Photocell options are not suitable for semi-recessed or cornice mounting

IP65
IK11
Up to 138.6 LL/CW

Specification

Lighting management

Specification

Mounting

Surface

IP rating

IP65

Impact rating

IK11

Max presence detection height

Up to 4 m

Lighting

Optic

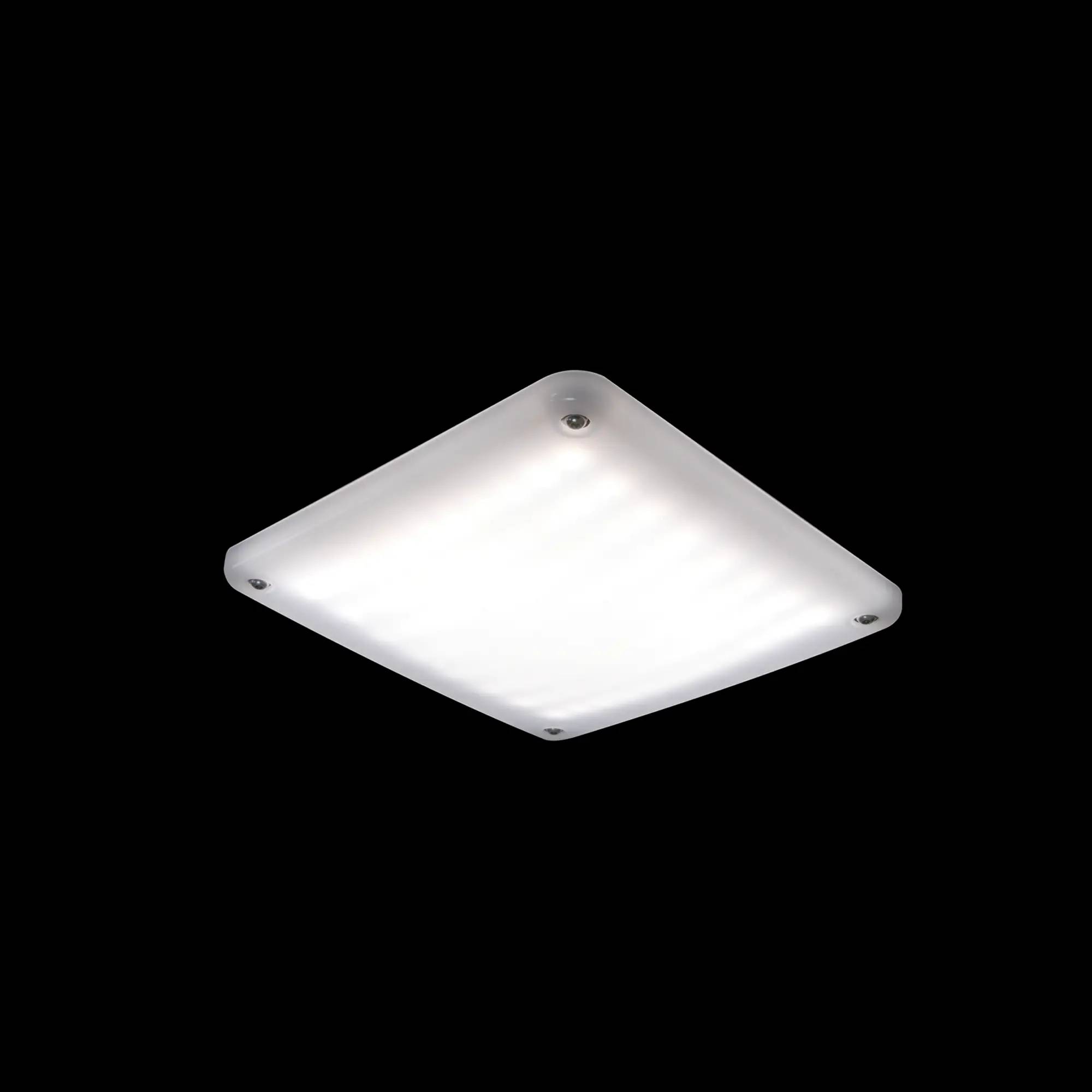

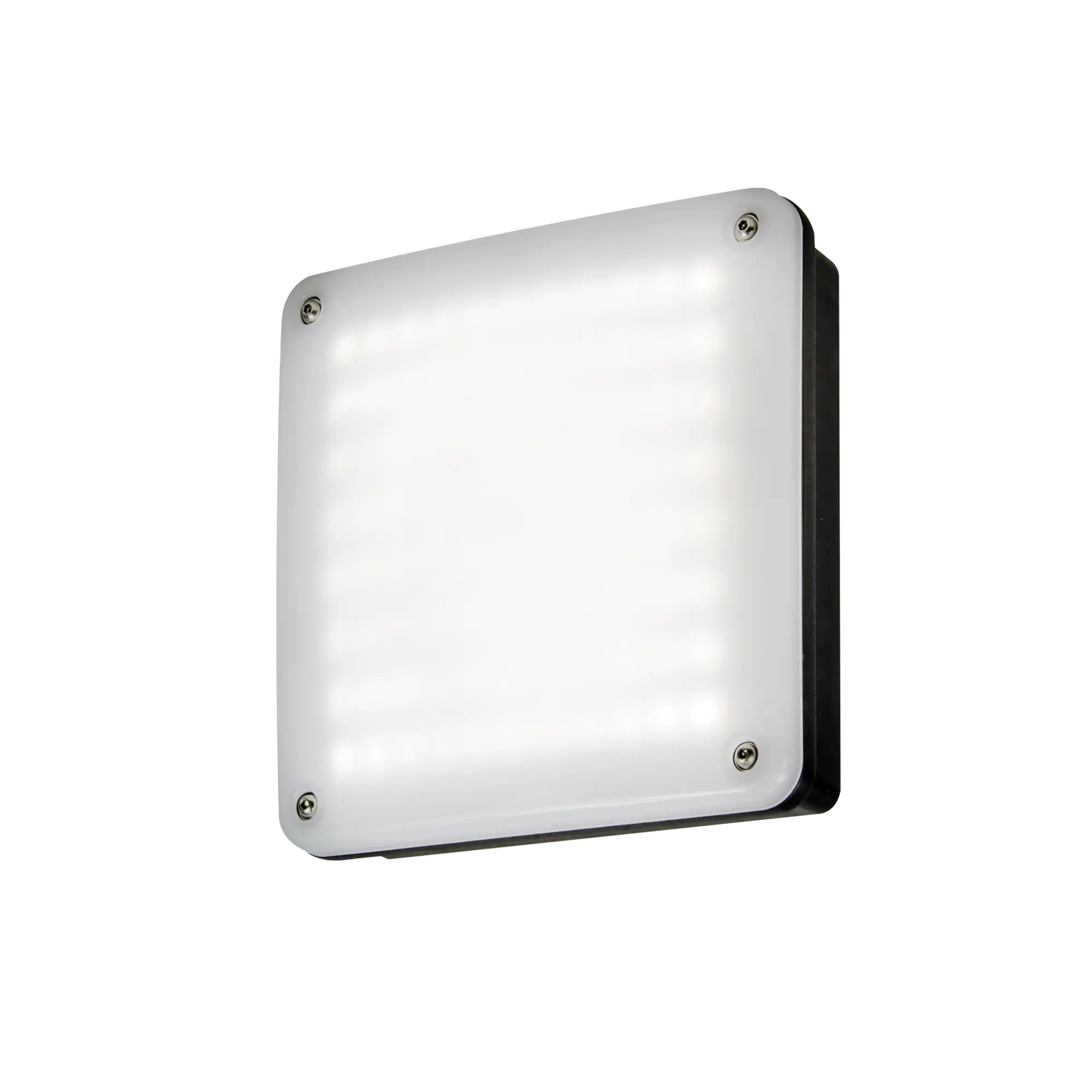

Low profile satin cover
Prismatic cover

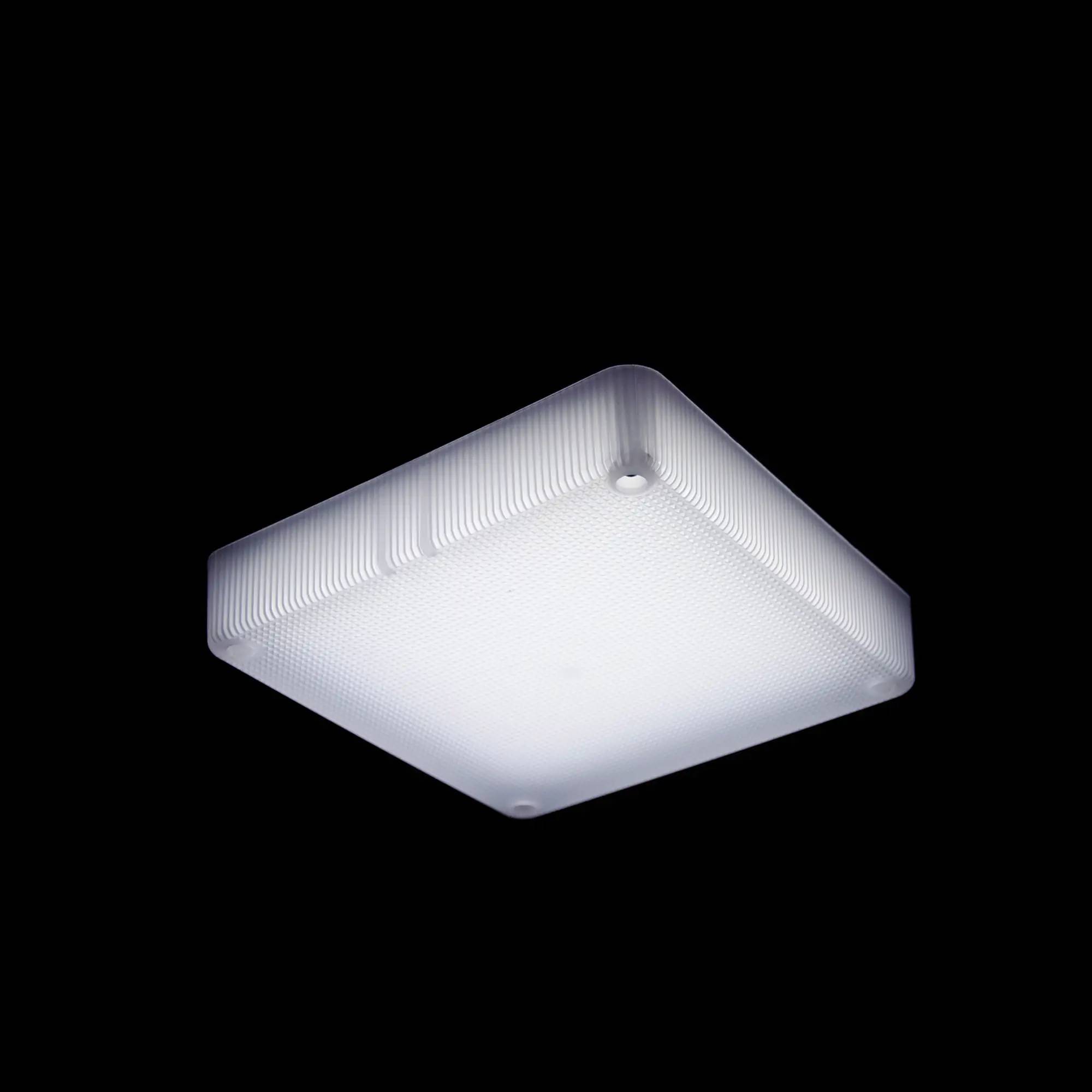

Satin cover

Lumen output

1,645 lm - 2,650 lm

Efficacy

Up to 138.6 LL/CW

Emergency data

Emergency lumen output

340 lm - 430 lm

Emergency type

Maintained

Emergency duration

3 hours

Battery specification

Lithium Iron Phosphate (LiFePO4)
Nickel Metal Hydride (NiMH)

Power

LED characteristics

CRI

80+

Colour temperature

4000 K

Rated life (hours)

100 K - L80/B10

Compliance

UKCA

Yes

CE

Yes

Energy efficiency class

This product contains a light source of energy efficiency class B

MOD compliance

JSP482 Chapter 8 Document for 'Category C' areas

SmartScan wireless standards compliance

Europe: EN 300 220-1 V2.4.1/ EN 301 489-3 V1.6.1. Australasia: ACMA 2014 Radio Communication Standard 2014. Thorlux Patented Wireless Technology - GB2575724
